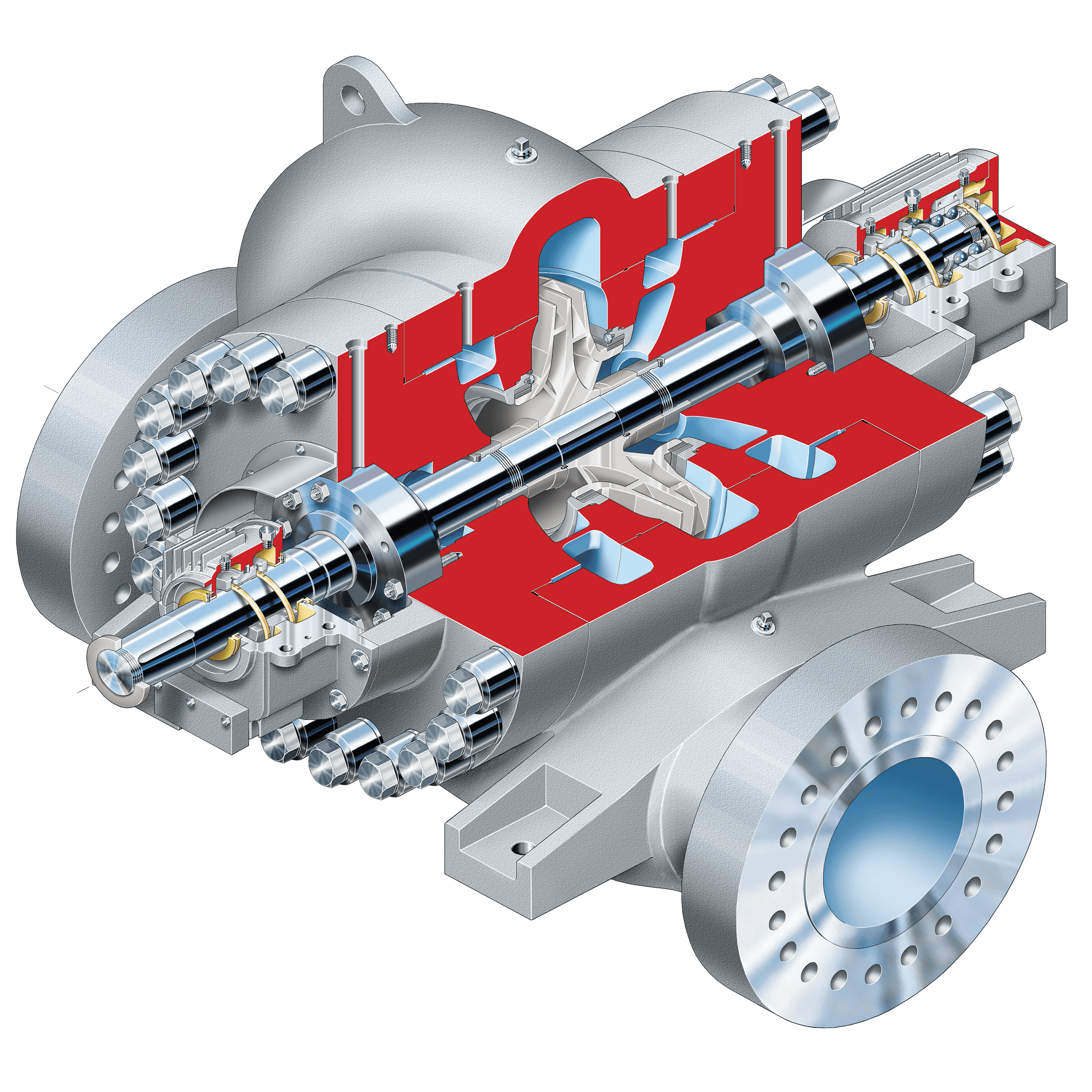

Flowserve DVSR Between Bearings Pump - Radially Split, Single Case

Flowserve

Flowserve DVSR Between Bearings Pump - Radially Split, Single Case

رقم القطعة: flowserve-552

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق Ohmva.

الوصف

The DVSR is a between bearings, radially split, single stage pump designed for continuous service in severe duty, high pressure pipeline services. Based on our range of DVSH, axially split pumps with over 100 hydraulics available, the DVSR is the ideal choice where an axially split pump is limited. Features and benefits: - Radially split case allows operation to much higher pressure and lower specific gravities than similar axially split cases - Suction and Discharge Nozzles are integrally cast in casing to permit pump disassembly without disturbing the piping - Double Volute Design minimizes hydraulic radial forces in any condition down to the minimum flow - Double Suction Impeller provides hydraulic axial balance and allows minimal NPSHr - ISO 21049/API 682 Seal Chambers ensure ample flow around the seal faces and accommodate numerous seal designs - Heavy-Duty Shaft Design ensures trouble-free operation below the first critical speed - Standard Renewable Casing and Impeller Wear Rings provide hydraulic stability and high operating efficiency

المواصفات

Brand lineFlowserve
StandardsISO 13709 / API 610 Hydraulic Institute
StatusAftermarket support only - no longer available for purchase
Size RangeSizes from 150 mm (6 in) to 600 mm (24 in)
Flows to3635 m3/h (16000 gpm)
Temperatures to204°C (400°F)
Speeds to4000 rpm
Pressures to260 bar (3750 psi)
Heads to250 m (820 ft)
