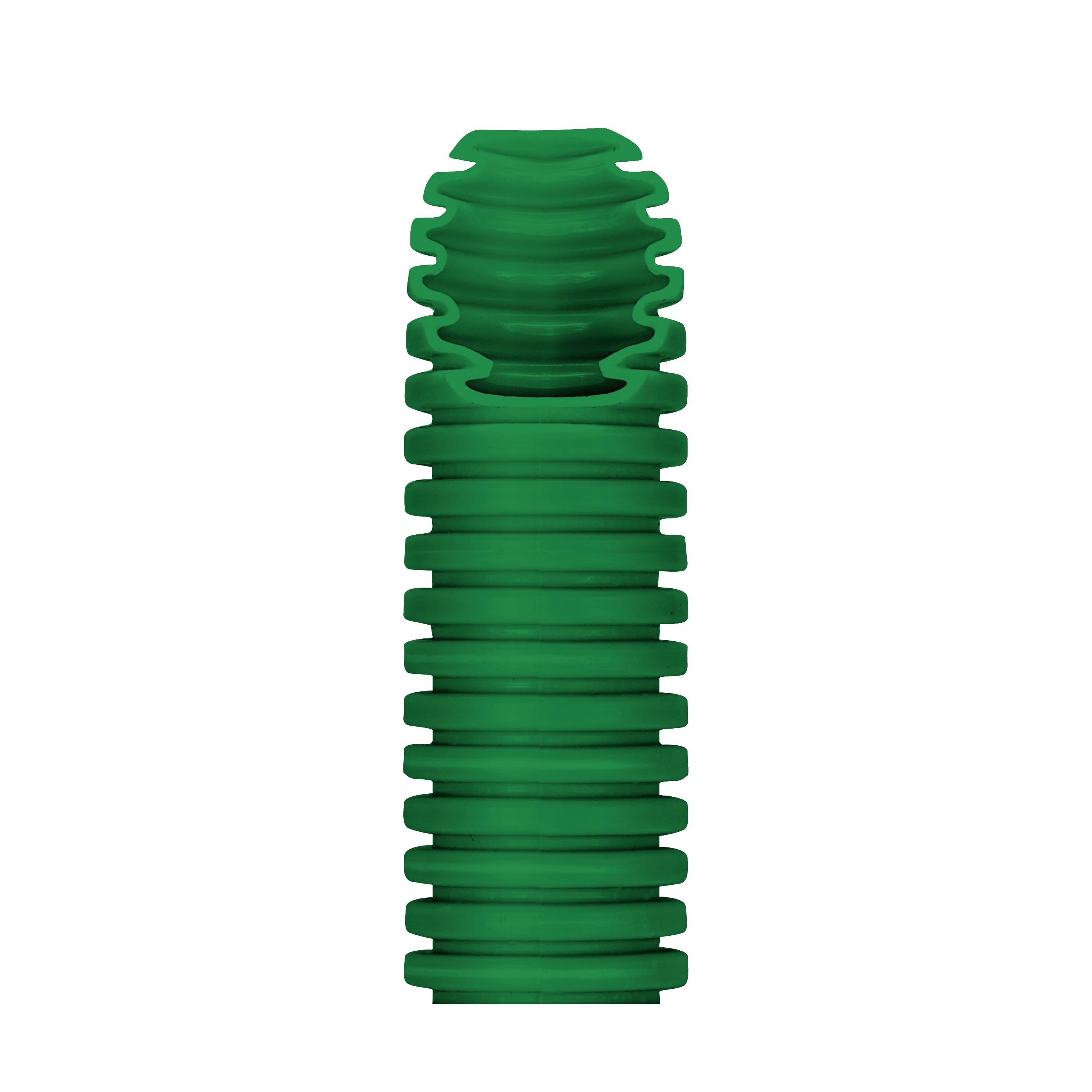

MEDIUM PLIABLE CONDUIT - ICTA SELF-RECOVERING - Ø 32MM - WITHOUT CABLE PULLER - GREEN
رقم القطعة: DX22032R
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق Ohmva.
الوصف
MEDIUM PLIABLE CONDUIT - ICTA SELF-RECOVERING - Ø 32MM - WITHOUT CABLE PULLER - GREEN
المواصفات
| Colour | Green |
|---|---|
| Material | PP self-extinguishing |
| Type | without cable puller |
| Conduits Ø (mm) | 32 |
| Glow Wire Test | 850 °C |
| Resistance to compression | 3 (Medium - 750 N) |
| Resistance to impact | 4 (Heavy - 6 J) |
| Resistance to bending | 3 (Pliable - self recovering) |
| Electrical characteristics | 2 (With electrical insulating characteristics) |
| Protection against ingress of solid objects without accessories | 0 |
| Protection against ingress of water | 0 |
| Resistance against corrosion | PP naturally resistant to corrosion |
| Fire resistance | 1 (Non-flame propagating) |
| Protection against ingress of solid objects with GF coupling | 4 |
| Standard | EN 61386-1 EN 61386-22 |
| Classification | 3422 |
| Ware Number | 39172210 |
| Source URL | https://www.gewiss.com/ww/en/products/product.1000000.1000055.DX22032R |
| GEWISS Family | Building |
| GEWISS Series | Green Wall range-Flush-mounting system for plasterboard walls |
| GEWISS Taxonomy Path | Building > Green Wall range-Flush-mounting system for plasterboard walls |
| Datasheet URL | https://www.gewiss.com/content/gewiss/ww/en/products/product.datasheet.1000000.1000055.DX22032R.pdf |
| Insulation resistance | 100 MΩ a 500 V for 1 minute |
| Dielectric rigidity | 2000 V a 50 Hz for 15 minutes |
| Length (m) | 50 |
| Halogen Free | Yes, according to EN 50642 |
| Low smoke | Low smoke in according to EN 61034-2 |
| Operating temperature | -5 +90 °C |
| Family | ICTA |
| GEWISS Families | Building, Installation |
| GEWISS Taxonomy Paths | Building > Green Wall range-Flush-mounting system for plasterboard walls | Installation > FK Range-Pliable protective conduit systems | Installation > Green Wall range-Flush-mounting system for plasterboard walls |
| GEWISS Series (all) | Green Wall range-Flush-mounting system for plasterboard walls | FK Range-Pliable protective conduit systems |
