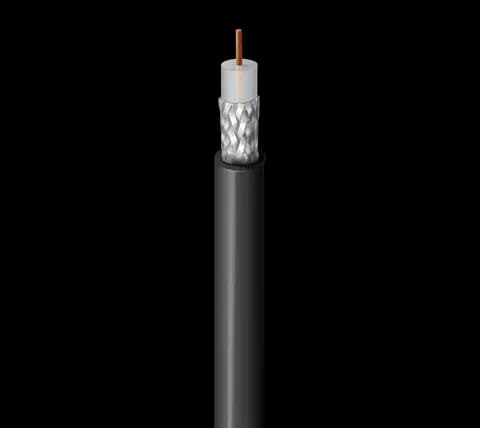

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, CM

Name: 50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, CM
Brand: Belden
SKU: 8219

رقم القطعة: 8219

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق Ohmva.

الوصف

50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Str TC, 95% TC Braid, PVC Jkt, CM

Update and Revision	Revision Number: 0.534 Revision Date: 02-20-2026
Source URL	https://www.belden.com/products/cable/coax-triax-cable/50-ohm-coax-cable/8219
Belden Taxonomy Path	cable > coax-triax-cable > 50-ohm-coax-cable
Belden Category	cable
Belden Subcategory	coax-triax-cable
Belden Sub-subcategory	50-ohm-coax-cable
Datasheet URL	https://catalog.belden.com/techdata/EN/8219_techdata.pdf
CEC / C(UL) Compliance	CM.
Frequency	Nom. Attenuation
Suitable Applications	Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)
PVC - Polyvinyl Chloride	0.193 in (4.90 mm)
Max. Pull Tension	50 lbs (23 kg)
Bulk Cable Weight	26 lbs/1000ft
Environmental Suitability	Outdoor - Aerial, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire
Flammability / Reaction to Fire	UL1685 UL Loading, UN ECE R118.02
NEC / UL Compliance	CM
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance	China RoHS II (GB/T 26572-2011)
Footnote	C - CRATE REEL PUT-UP.
RoHS Document URL	https://catalog.belden.com/assets/docs/8219_rohs.pdf
Overall Cable Diameter (Nominal)	0.193 in (4.90 mm)
UL Temperature	Operating
Other Standard Compliance(s)	P-MSHA-SC-182/5
AWM Compliance	AWM 1354
Sustainability	CA Prop 65
RG Type	58
