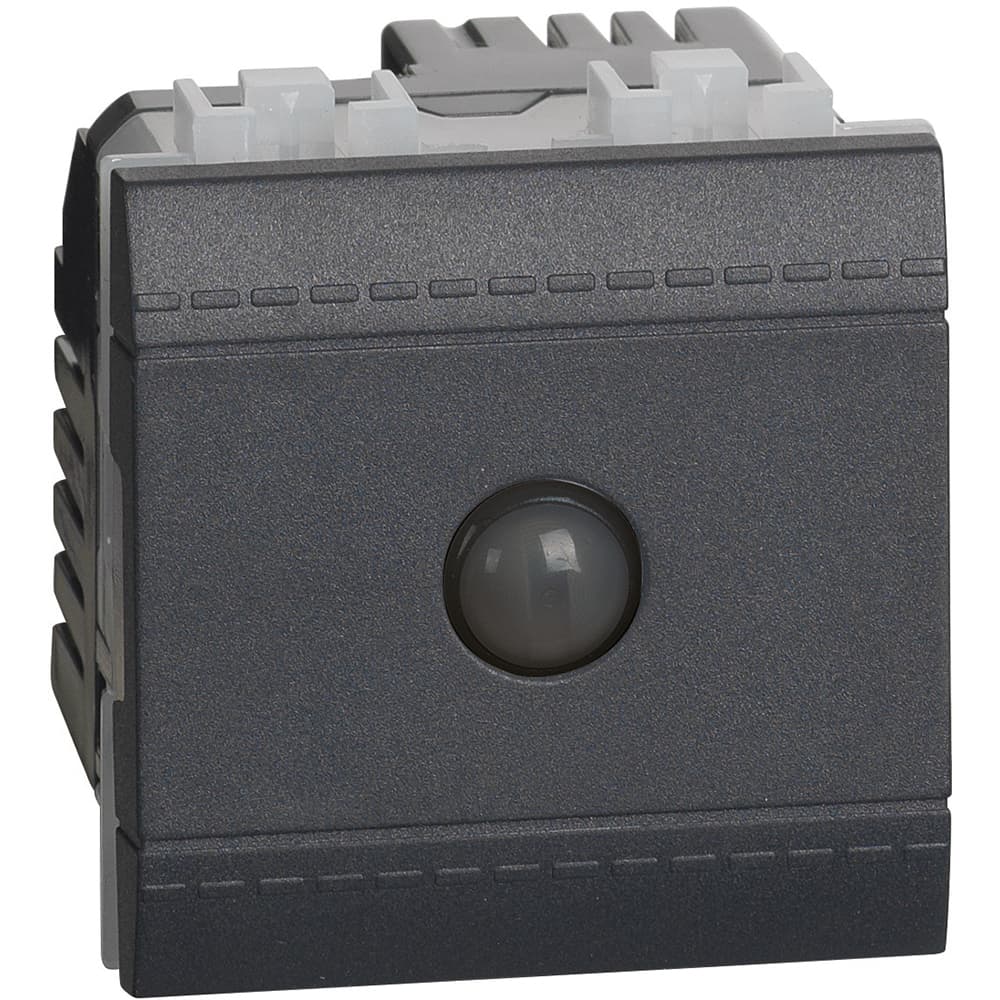

Switch energy saving that automatically switches off the Light after 10 minutes.
رقم القطعة: BT-L4003ES
لا يعرض أي بائع سعرًا لهذا المنتج بعد.
للطلب والدفع استخدم تطبيق Ohmva.
الوصف
Switch energy saving that automatically switches off the Light after 10 minutes.
المواصفات
| Built-in depth | 32 mm |
|---|---|
| Mounting method | Flush-mounted |
| Colour | Anthracite |
| Degree of protection (IP) | IP20 |
| degree of impact strength (IK) | IK02 |
| Operating / setting temperature (Min-Max) | -5-45 °C |
| Storage temperature (Min-Max) | -20-70 °C |
| Voltage type | AC |
| Nominal voltage (Min-Max) | 230-230 V |
| Frequency (Min-Max) | 47-53 Hz |
| Standby consumption | 0 mA |
| Halogen free | Yes |
| Label space/information surface | No |
| Source URL | https://www.bticino.com/products/bt-l4003es |
| Part Number | L4003ES |
| BTicino Category | Two-way rocker switches |
| BTicino Taxonomy Path | Switches, sockets and wiring devices > Livinglight premium range > Switch, two-way switch, pushbutton and key cover > Two-way rocker switches |
| BTicino Series | Livinglight |
| Obsolete | No |
| New | No |
| Datasheet URL | https://assets.legrand.com/pim/NP-FT-GT/F01942EN-02.pdf |
| Antimicrobial treatment | No |
| Width | 44 mm |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Transparent | No |
| Model | Movement sensor |
| Depth | 43 mm |
| Height | 44 mm |
| Connection type | Screwed terminal |
| Terminals capacity (Min-Max) | 1.5-2.5 mm² |
| RAL-number (similar) | 7015 |
| Min. depth of built-in installation box | 42 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Connection cable length | 0 mm |
| Mandatory neutral | No |
| Substation input | Yes |
| Creep-under protection | No |
| Background monitoring | No |
| Animal zone | No |
| Staircase light controller | Yes |
| Optimum mounting height | 1.2 m |
| Max. reach sideways | 6 m |
| Max. reach frontally | 8 m |
| Diameter reach on floor | 6 m |
| Detection angle horizontal (Min-Max) | 160-160 ° |
| Min. switch-on time | 600 s |
| Max. duty cycle | 10 min |
| With connection cable | No |
| Constant light control | No |
| HVAC-control | No |
| Forced switch off | Yes |
| Networkable | No |
| Bridging switch | Yes |
| Suitable for wireless transmission | No |
| Remote operation | No |
| Supplied remote control | No |
| With signal unit | No |
| With alarm function | No |
| With acoustic sensor | No |
| Movement sensor/presence detector technology | Passive infrared |
| Auto switch | No |
| With DALI interface | Yes |
| Max. starting current | 0.05 A |
| Switch-off delay | 600 s |
| Response value luminosity (Min-Max) | 0-0 lx |
| Number of switching zones | 0 |
| Control current | 0.05 mA |
