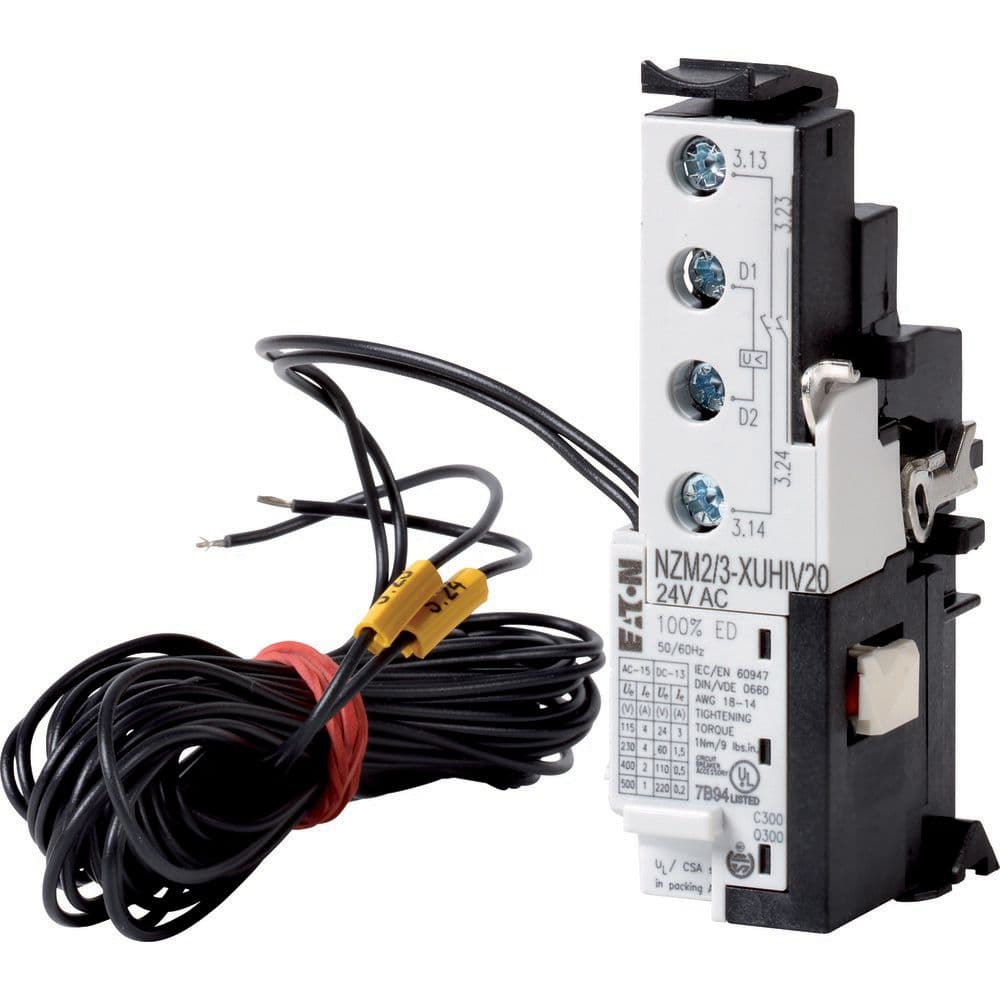

Eaton Moeller series NZM Undervoltage release

Eaton

Eaton Moeller series NZM Undervoltage release

رقم القطعة: 284408

لا يعرض أي بائع سعرًا لهذا المنتج بعد.

للطلب والدفع استخدم تطبيق Ohmva.

الوصف

Eaton Moeller series NZM Undervoltage release

المواصفات

Special featuresUndervoltage release with 2 early-make auxiliary contacts, e.g., for early-make connection of undervoltage release in main switch applications, as well as for interlock and load shedding circuits.For use with emergency-stop devices in connection with an emergency-stop button.When the under-voltage trip is switched off, accidental contact with the circuit breaker’s primary contacts is prevented when switched on.Early make of auxiliary contacts on switching on and off (manual operation): approx. 20 msCannot be used in conjunction with NZM...-XR... remote operator.
Product NameEaton Moeller series NZM Undervoltage release
Catalog Number284408
Model CodeNZM2/3-XUHIV20LK208-240AC
EAN4015082844080
Product Length/Depth42 mm
Product Height90 mm
Product Width30 mm
Product Weight0.074 kg
CompliancesUL/CSA IEC RoHS conform
CertificationsCE marking IEC60947 CSA-C22.2 No. 5-09 UL489 UL (File No. E140305) CSA (File No. 22086) UL listed CSA certified CSA (Class No. 1437-01) UL (Category Control Number DIHS)
Source URLhttps://www.eaton.com/gb/en-gb/skuPage.284408.html
Suitable forOff-load switch
Used withNZM2(-4), N(S)2(-4) NZM3(-4), N(S)3(-4)
TypeUndervoltage release with early-make auxiliary contact
Fitted with:Two separate early-make auxiliary contacts
FrameNZM2/3
